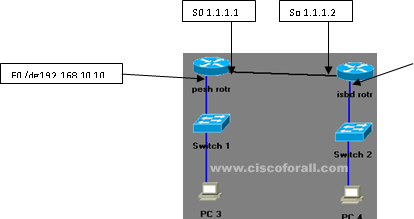

In Static routing the network administrator hand type the path for routing. As
- Router>enable
- Router# conf terminal
- Roter(config)# int e0
- Router(config_if)# ip add 192.168.10.10 255.255.255.0
- Router(config_ig)# no shutdown
- Router(config_if)# exit
- Router(config)# int s0
- Router(config_if)# ip add 1.1.1.1 255.0.0.0
- Router(config_if)# no shutdown
- Router(config_if)# clock rate 64000
- Router(config_if)# exit
- Router(config)# ip route 192.168.20.0 255.255.255.0 1.1.1.2
- Router(config)# exit
Now on Router 2 do the following configuration
- Router# conf terminal
- Router(config)# int e0
- Router(config_ig)# ip add 192.168.20.10 255.255.255.0
- Router(config_ig)# no shutdown
- Router(config_if)# exit
- Router(config)# int s0
- Router(config_ig)# ip add 1.1.1.2 255.0.0.0
- Router(config_if)# no shut
- Router(config_if)# clock rate 64000
- Router(config_if)# exit
- Router(config)# ip route 192.168.20.10 255.255.255.0 1.1.1.1
- Router(config)# exit
